The Camper is Done!

In 2020, we mostly finished renovating our toy hauler trailer enough that we could take it out for a spin during the 2021 camping season. After a successful 2021 season, we made our final changes to make it ready for the great adventure starting in 2022.

Being a fairly small space, you can see most of the inside of our camper from just two locations. Here are photospheres taken from those two locations (in May 2022). You can determine your location by finding the door (which is the one item in both photos). There are also older pictures taken on the deck as well as one from the roof.

Drag around the image to move the view, or click the full screen button below the +/- buttons on the left for a big experience.

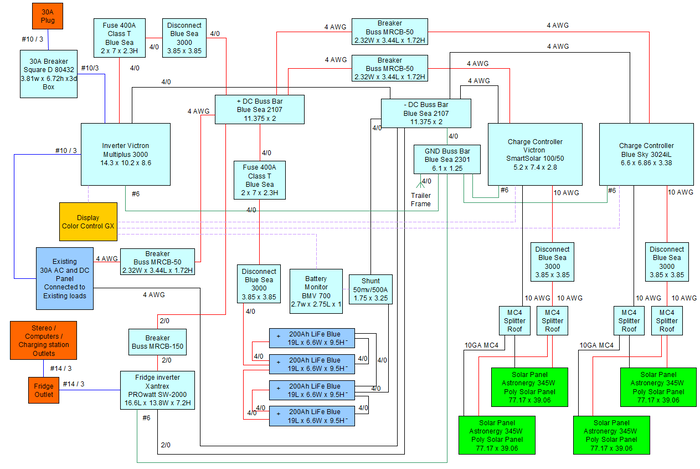

The existing DC wiring to the lights and stuff as well as the AC wiring to the appliances remained the same out of the existing breaker/fuse panel.  The original converter/charger was removed and all the wiring before the panel was replaced as per the diagram below.

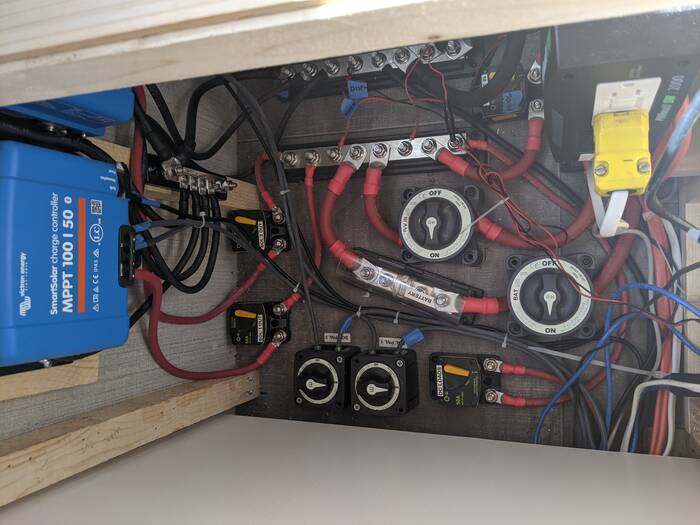

Access panel at the foot of the bed allows access to most all the new disconnects and fuses.

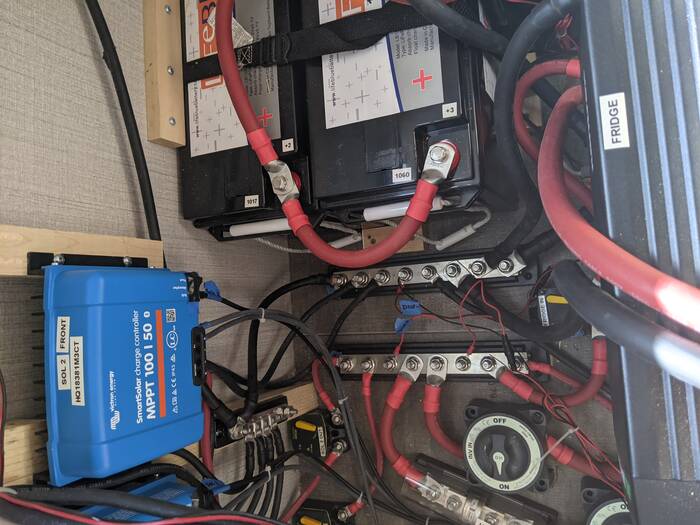

Bus bars, Smaller inverter, Solar controller, and some batteries

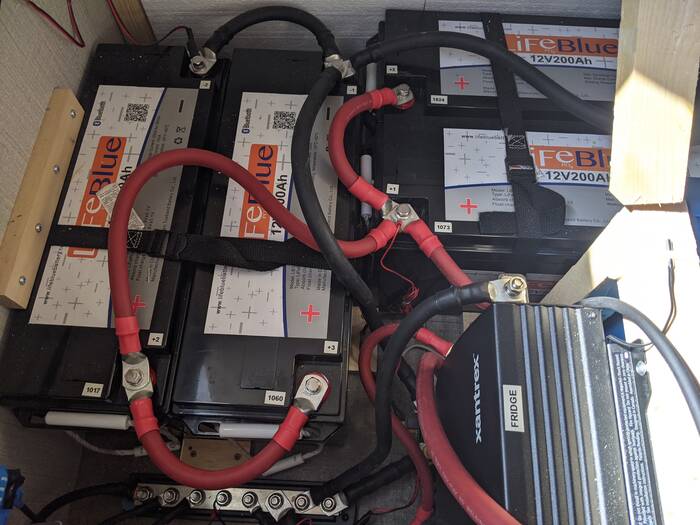

Another view of the small inverter and most of the batteries

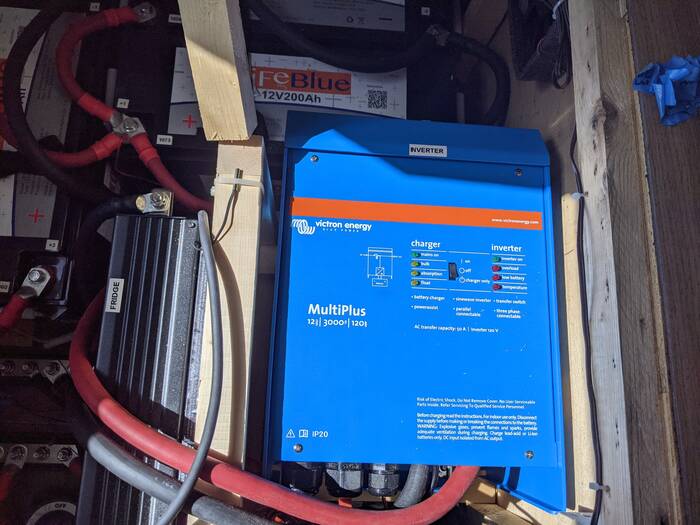

The big inverter that runs most everything

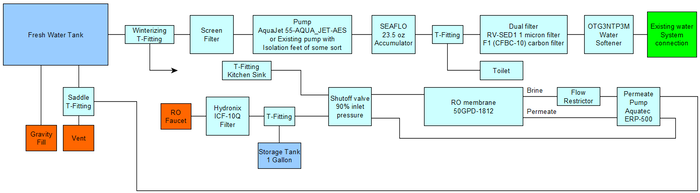

Most of the plumbing remained in place.  The big change here was moving the water pump from the area where the water heater is over into the cabinet under the sink.  We added whole house water filtration as well as an RO system for tasty drinking water.  The toilet is plumbed in before filtration so we get better flow to the toilet.  Almost all of the new components and connections are located below the bathroom sink (which is quite full now).
